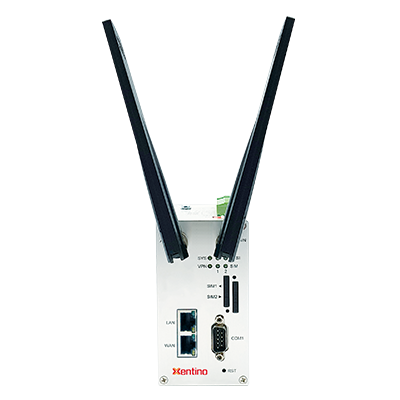

Xentino MR400 Industrial 4G/LTE Cellular Router

Xentino MR400 Industrial 4G/LTE Cellular Router


Xentino MR400 series 4G/LTE Cellular Routers are highly reliable and secure wireless communications gateway designed for industrial networking. 1xWAN, 1xLAN, 2xRS232, 1xRS485, 2xSMA Antenna Connector (MAIN+AUX), 2xDI, 1xDO, 2xSIM Card Slots, -20 ~ +70°C

Xentino MR400 series 4G/LTE Cellular Routers are highly reliable and secure wireless communications gateway designed for industrial networking. 1xWAN, 1xLAN, 2xRS232, 1xRS485, 2xSMA Antenna Connector (MAIN+AUX), 2xDI, 1xDO, 2xSIM Card Slots, -20 ~ +70°C

Xentino MR400 series 4G/LTE Cellular Routers are highly reliable and secure wireless communications gateway designed for industrial networking. It supports multi-band connectivity including FDD/TDD LTE, WCDMA and GSM for a wide range of applications and vertical machine-to-machine (M2M) markets. To enhance reliability, MR400 series are equipped with dual SIM that supports failover and roaming over to ensure uninterrupted connectivity for mission-critical cellular communications.

With flexible LAN/WAN Ethernet options,　MR400 series allow you to customize your professional applications in diverse environments. It also provides enterprise-grade software features, such as Quality of Service (QoS) for traffic prioritization, IPSec, OpenVPN, Firewall security and etc. The device are administrated via web GUI, Telnet, SSH v2 and HTTP/HTTPS.

Built for secure and uninterrupted operation in harsh environments, MR400 series support extended operating temperature from -20 to +70°C and a flexible input voltage range of 10-32V DC. Xentino MR400 series are ideal cellular communications solution for heavy industrial use.

Key Features

  • Highly reliable and secure for mission-critical cellular communications
  • Provide flexible options to configure LAN/ WAN ports
  • Support multi-band connectivity with FDD LTE/ TDD LTE/ WCDMA/ GSM/ LTE Cat4　
  • Built-in dual SIM for network redundancy
  • Integrated dual detachable antenna against radio interference
  • LED indicators for connection and data transmission status
  • Industrial rated from -20 to +70°C for use in harsh environments
  • Metal Housing with IP40 industrial grade protection
  • IPv6/IPv4 dual stack and all applications are IPv6 ready
  • Support various serial communication protocols for rich connectivity
  • Enhance security and encryption for authentication and transmission

Specifications

LTE Interface

  • FDD LTE: B1/B3/B5/B7/B8/B20
  • TDD LTE: B38/B40/B41
  • WCDMA: B1/B5/B8
  • GSM: 900/1800 MHz
  • LTE Cat4

Processor & I/O Interface

  • High performance 528 MHz CPU with 512 Mbytes of DDR3 memory
  • 2 x SIM Card Slots
  • 1 x LAN 10/100 Mbps Ethernet port (Model: MR400)
  • 3 x LAN 10/100 Mbps Ethernet ports (Model: MR401)
  • 1 x WAN 10/100 Mbps Ethernet port
  • Reset Button
  • Console: 1 x RS232 (9-pin Sub-D)
  • 2 x SMA connectors for detachable LTE antenna
  • 1 x GPS detachable antenna (Optional)
  • 1 x RS485 (D+/D-)
  • 1 x RS232 (TXD/RXD)
  • 2 x DI, 1 x DO (Alarm +/-)

Physical Characteristics

  • Enclosure：Metal Shell
  • Housing：IP40 Protection
  • Dimensions (W x H x D)：60 x 110 x 106 mm
  • Weight：451 g (0.9943 lb) / 452 g (0.9965 lb) (Model:MR400/MR401)
  • Installation：DIN Rail (Default) or Wall Mount (Optional)

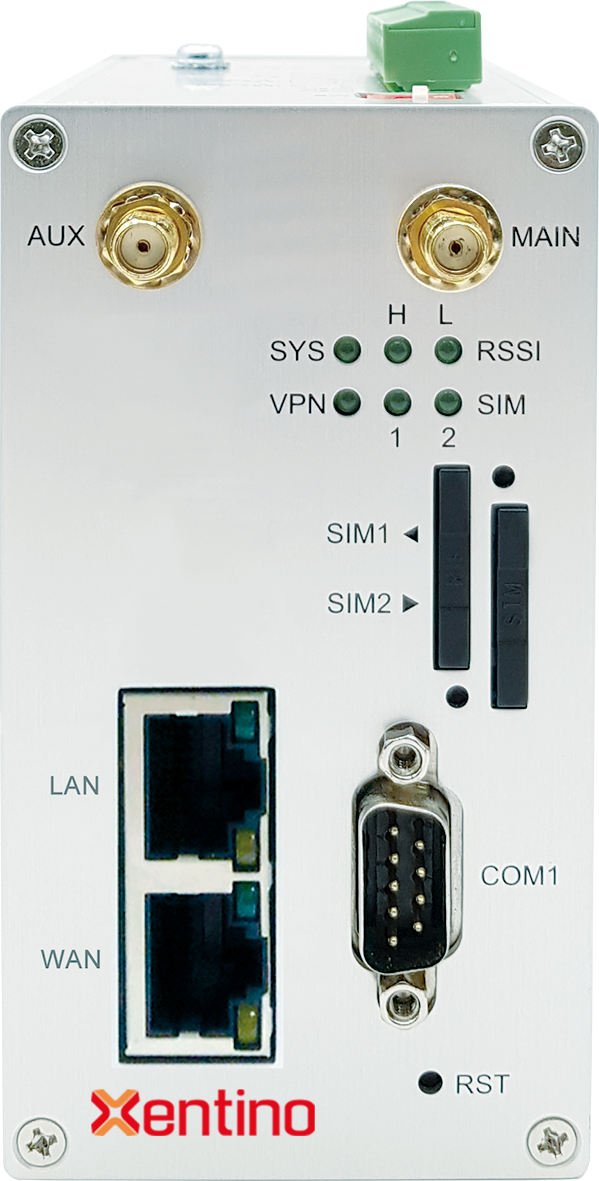

LED Display

  • 1 x System status LED (Green)
  • 1 x VPN status LED (Green)
  • 1 x SIM1 status LED (Green)
  • 1 x SIM2 status LED (Green)
  • Ethernet status LEDs (Green for LINK/ACT, Yellow for SPEED)
  • 2 x Mobile connection strength LEDs (Green)

Power Supply

  • Power Consumption  7 Watts(Max)
  • Power Input  10 ~ 32V DC

MTBF (mean time between failures)

  • MR400 : 155,899 hrs　(MIL-HDBK-217-FN2)
  • MR401 : 148,930 hrs　(MIL-HDBK-217-FN2)

Software

Network Protocols:

  • IPv4, IPv6, IPv4/IPv6 dual stack, DHCP server and client,
  • PPPoE, Static IP, SNTP, GPS sync time, DNS Proxy,
  • Modbus, VRRP, OSPF, Message Queue Telemetry Transport
  • (MQTT Broker), BGP





Routing/Firewall:

  • NAT, Virtual Server, DMZ, MAC Filter, URL Filter, IP Filter,
  • VLAN, Static Routing and RIP-1/2

VPN:

  • OpenVPN, IPSec (3DES, AES128, AESMAYIS6, AES256, MD5,
  • SHA-1, SHA256), GRE, PPTP, L2TP

Wireless Connectivity:

  • Two SIM for failover/ roaming over/ back up
  • Two SIM data usage control
  • Seamless multi WAN connections switch

Others:

  • DDNS, QoS, Virtual COM, UPnP

Alarm:

  • DI, DO, SMS, VPN/WAN Disconnect, SNMP Trap, E-mail

Management Software

  • Web GUI for remote and local management, CLI
  • Dual Image firmware upgrade by Web GUI
  • Syslog monitor
  • SNMP, TR069
  • Remote management via SSH v2, HTTPS
  • Local management via Telnet, SSH v2, HTTP/HTTPS

Environment

  • Operating Temperature    -20 ~ +70°C
  • Storage Temperature      -40 ~ +85°C
  • Ambient Relative Humidity  10 ~ 95% (non-condensing)
  • Humidity                   0 ~ 95% (non-condensing)

Standards and Certifications

  • EMC：CE, FCC
  • EMI：EN 55032 Class A, FCC Part 15 Subpart B Class A
  • EMS：EN 55024 / EN 61000-4-2 (ESD) Level 3 /

EN 61000-4-3 (RS) Level 3 / EN 61000-4-4 (EFT) Level 4 /

EN 61000-4-5 (Surge) Level 3 / EN 61000-4-6 (CS) Level 3 / EN 61000-4-8 (PFMF) Level 4 / EN 61000-4-11 /

EN 61000-6-2 (Industrial) / EN 61000-6-4 (Industrial)

  • Rail Traffic：EN50121-4
  • Vibration：IEC60068-2-6
  • Safety : EN60950-1
  • Highly Accelerated Life Test (HALT)
